Holemans suction dredger bucket wheel

E 6518 HS

Task

Washing and dewatering a mixture of water and gravel during continuous suction dredging operations.

Objective:
High solids throughput, reliable dewatering and efficient separation of fine particles.

Requirement

  • Processing large volumes of mixture: 1,600 – 1,800 m³/h

  • Reliable handling of solids up to approx. 100 mm

  • High solids throughput of 350 t/h on average

  • Robust, low-wear technology for continuous operation

  • Automatic adaptation to fluctuating material flows

Successful in use

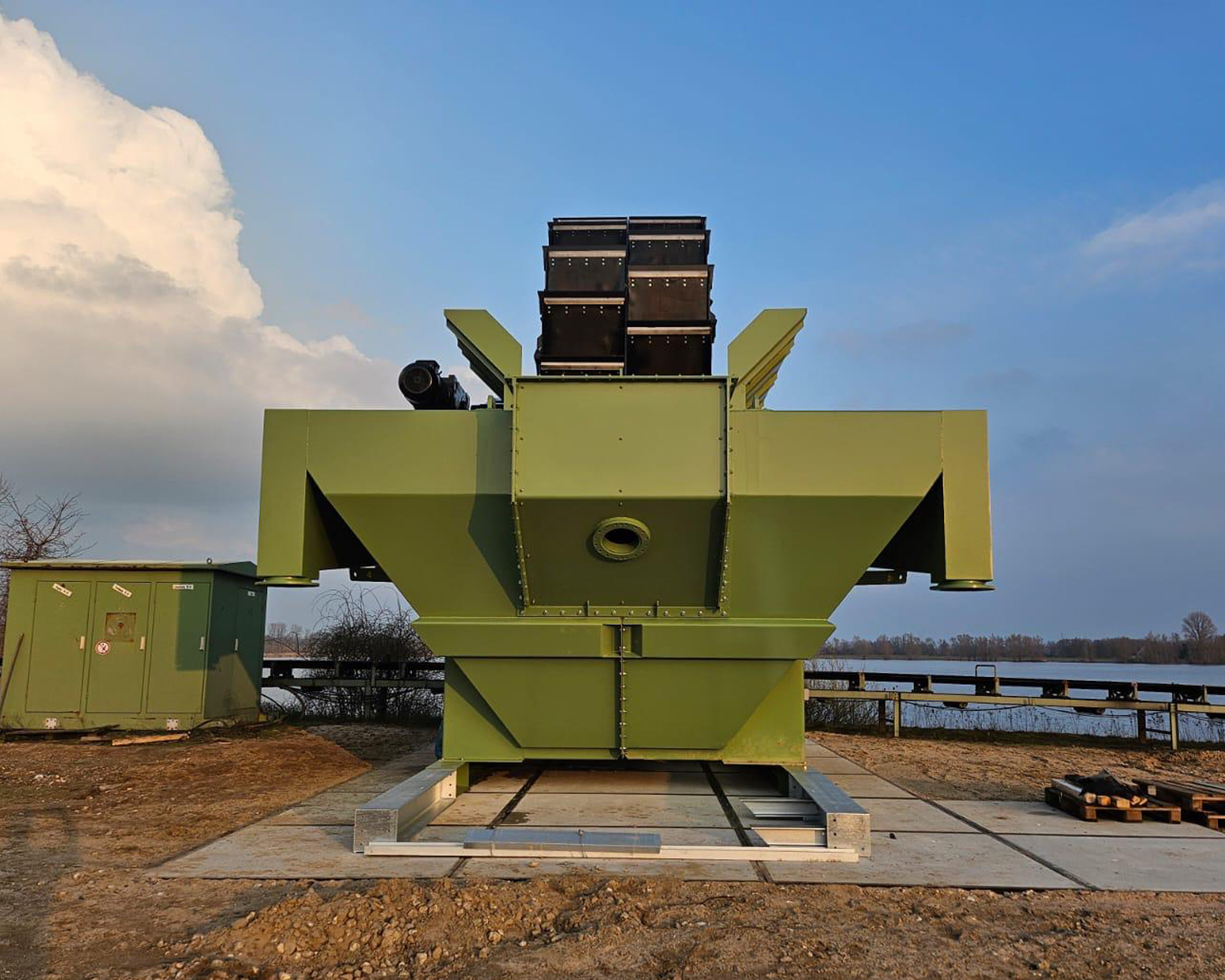

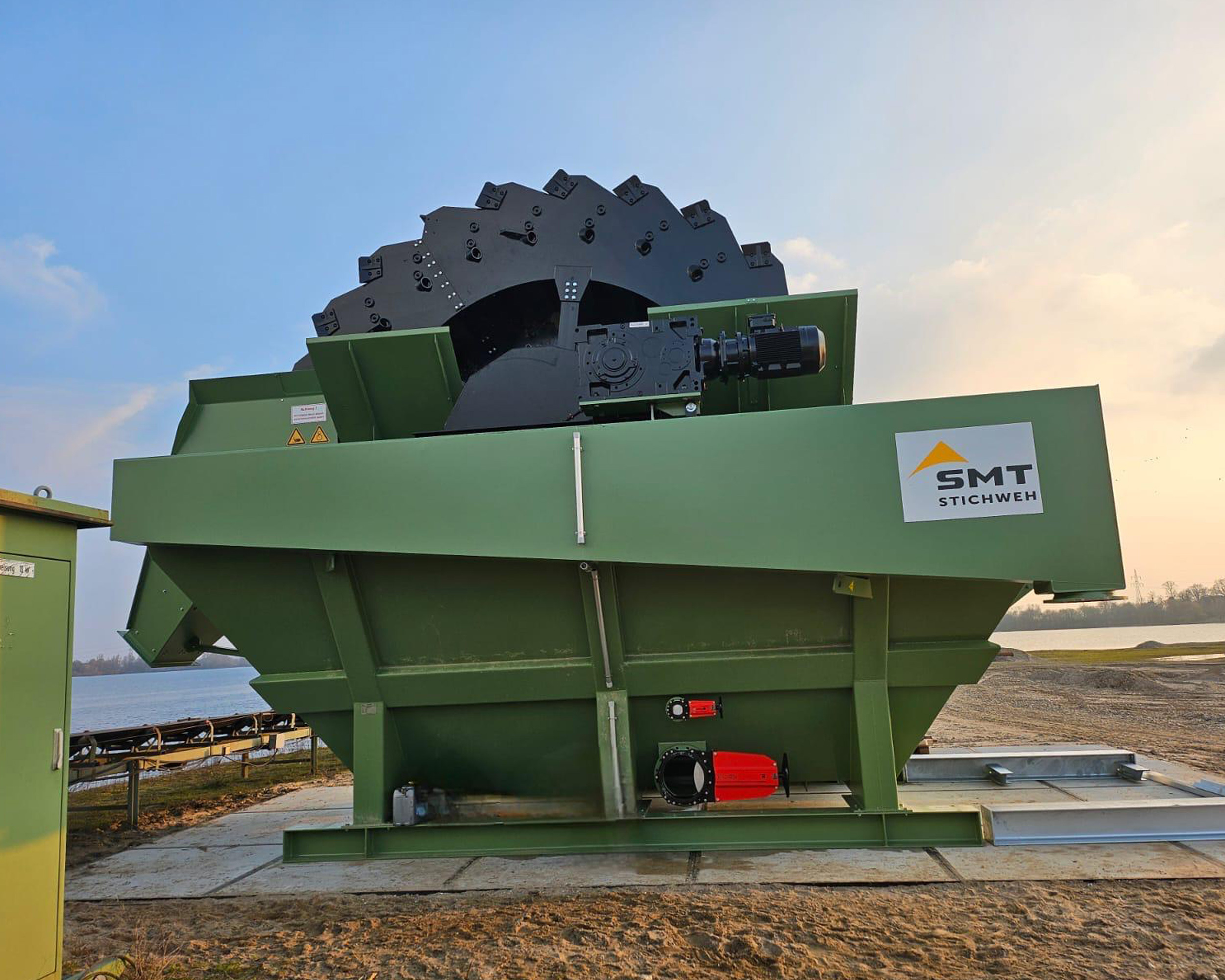

The E 6518 HS suction dredger bucket wheel takes the raw material conveyed by the suction dredger directly from the pressure pipe.
Thanks to speed-regulated, load-dependent frequency control, the system responds flexibly to changing mixtures and volumes of solids.

In the bucket wheel trough, the solids settle, are picked up by the wheel body, dewatered and continuously discharged. Fine particles and wastewater flow via the overflow into the on-site wastewater pipe. The robust, heavy-duty construction and the rubber-lined wheel body ensure a long service life and reliable operation – even under demanding conditions.

Performance at a glance

  • Efficient washing and dewatering of large quantities of material

  • Automatic speed and load control

  • High solids throughput: average 350 t/h

  • Processing of solids up to approx. 100 mm

  • Robust, heavy-duty design for maximum service life

  • Rubber-lined wheel body for optimum wear protection

  • Continuous, trouble-free operation in the suction dredging process

/////////////////////////////////////
